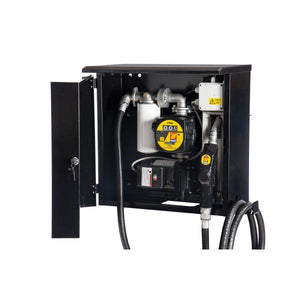

Black 230V Meclube Dispenser Cabinet transfer Kit 60L/min (includes Pump, Meter, Filter, Auto Nozzel, Hoses)

Meclube Diesel Dispenser Cabinet for Diesel Transfer 230Volt 60L/min
Includes - Pump, Meter, Filter, Connecton Hose, Auto Nozzel, Wall Cabinet



Solid cabinet in anti-corrosion painted steel complete with key lock. The pump is inside the cabinet
with anti-vibration supports. It is equipped with nozzle holder, microswitch to turn it on/off, automatic
nozzle with swiveling joint. Diesel transfer system for private usage, it allows the quick and safe filling
of vehicles, and permits to measure and record the dispensed quantities.


Spec:
Inlet/outllet connection F 1”-F 1” BSPG
Delivery 60l/min
Packing 615x375x605 mm
Voltage 230V
Power max 460 W
Duty cycle Contin
Cable 2mtrs + 2 pin plug
By-pass Valve In-built
Nozzel Automatic Cut-Off PA60
Suction Hose (not included)
Connection Hose Ø 20mm, Length 6mtrs
Pump 230V 60ltrs/min- 091-5095-060
Flow Meter 3 Digits F1" 120l/min 3C
Anti-Corrosion Cabinet - 090-5056-000
Filter Unit - 094-5240-000

Optional:
To add 4mtr Suction Hose Order: 095-5440-040
