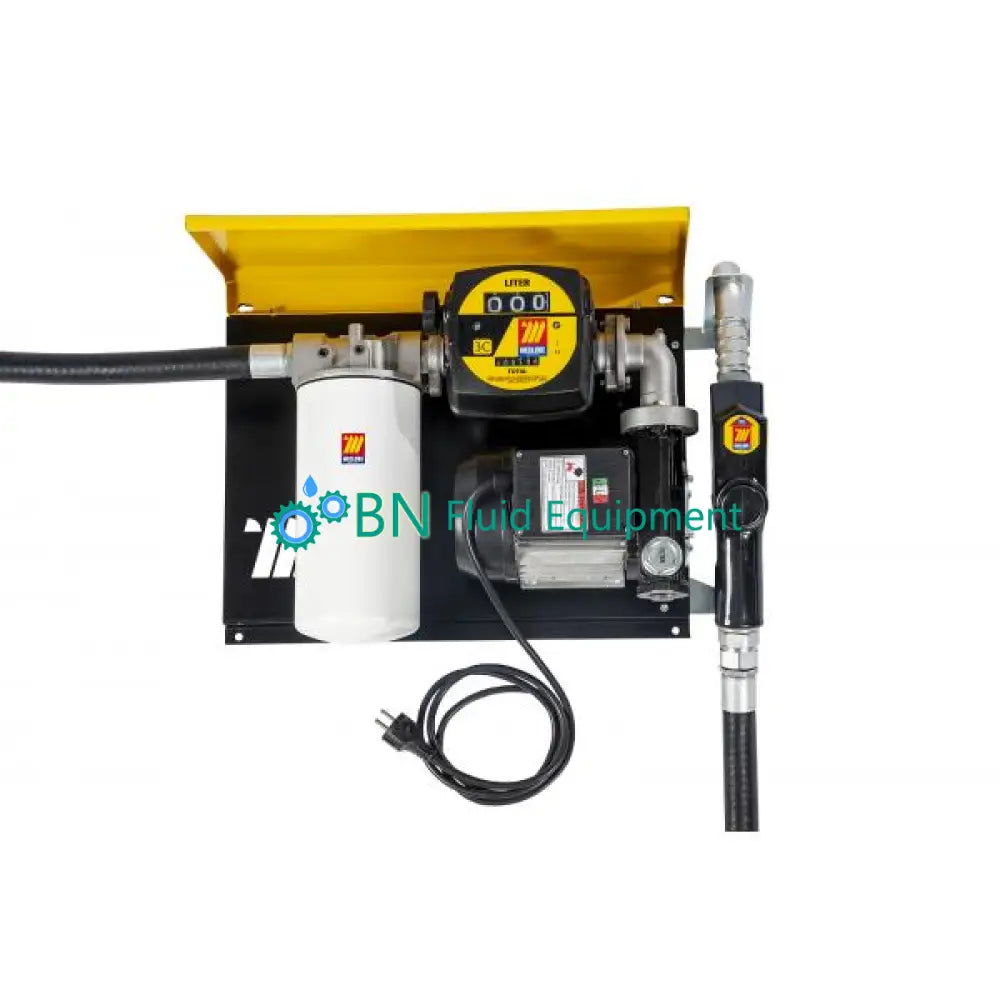

230V Meclube Yellow Wall Dispenser Fuel transfer Kit 100L/min (includes Pump, Meter, Filter, Auto Nozzel, Hoses)

Meclube Diesel Transfer kit 230Volt 100L/min
Includes - Pump, Meter, Filter, Connecton Hose, Auto Nozzel, Wall Bracket



Diesel transferring kit for private use. It allows the quick and safe filling of the vehicles.
It also permits to measure and record the dispensed quantities.


Spec:
Inlet/outlet connection F 1”-F 1” BSPG
Delivery 100 l/min
Weight 27.75 kg
Packing 550x400x320 mm
Voltage 230 V
Power max 805 W
Duty cycle Contin
Cable 2mtrs + 2 pin plug
By-pass Valve In-built
Nozzel Automatic Cut-Off PA120
Suction Hose (not included)
Connection Hose Ø 20mm, Length 6mtrs
Pump 230V 100ltrs/min- 091-5100-100
Flow Meter 4 Digits F1" 120l/min 4C


To add 4mtr Suction Hose Order: 095-5440-040
